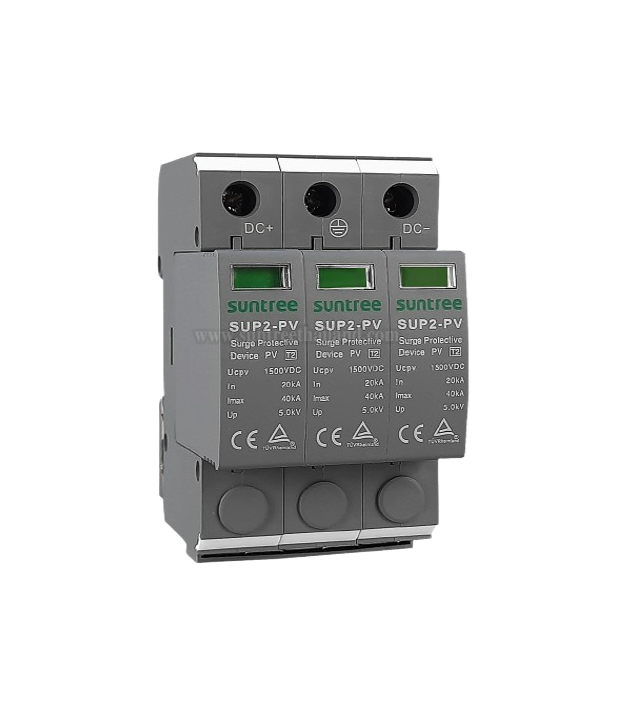

Suntree SUP2-DC Surge Protector
|
Maximum Continuous Operating DC Voltage |
800 V |
1500 V |
|||||
|
In(kA) |
20 |
||||||
|
Imax(kA) |
50 |
||||||
|
Iimp(kA) |
6.25 |
||||||
|
Itotal(kA) |
12.5 |
||||||
|
Numbers of poles |
1P/2P |
1P/2P |
1P/2P |
3P |
3P |
3P |
|
|
Protection level (ln) UP |
2.8 |
2.8 |
3.0 |
4.0 |
4.4 |
5.0 |
|
|
Mechanical & Environmental |
|||||||
|
Operating Temperature Range |
Ta |
-40 °F to +158 ° F (-40 °C to +70°C) |
|||||
|
Permissible Operating Humidity RH |
RH |
5%…95% |
|||||
|
Atmospheric Pressure & Altitude |
80k Pa … 160k Pa / -500m … 2000 m |
||||||
|
Terminal Screw Torque Mmax |
Mmax |
39.9 lfb.in (4.5 Nm) |
|||||
|
Conductor Cross Section (max) |
2 AWG (Solid, Standard)/ 4 AWG (Flexible) 35 mm2 (Solid, Standard)/ 25 mm2 (Flexible) |
||||||
|
Mounting |
35 mm DIN Rail, EN60715 |
||||||
|
Degree of Protection |
IP 20 (built-in) |
||||||
|
Housing Material |
Thermoplastic: Extinguishing Degree UL 94 V-0 |
||||||
|
Thermal Protection |
Yes |
||||||
|
Operating State/Fault Indication |
Green ok / Red defect |
||||||
|
Remote Contacts (RC) |
Option |
||||||
|
RC Switching Capacity |
AC: 250 V/ 0.5 A; DC:250 V/ 0.1 A; 125 V / 0.2 A; 75 V / 0.5A |
||||||
|
RC Conductor Cross Section (max) |
16 AWG (Solid) / 1.5 mm2 (Solid) |
||||||
