| Brands | Dyness |
| Product | Powerbox Pro |
| Battery type | LiFePO₄ |
| Nominal Battery Energy | 1024 kWh |
| Operating Voltage | 44.8-57.6 V |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200 Ah |
| Nominal Power | 5.12 kW |
| Peak Power | 10.24 kW |
| Recommended Charge & Discharge C Rate | 0.5 C |
| Recommended Charge & Discharge Current | 100 A |
| Recommended Depth of Charge (DOD) | 90 % |
| Net Weight | 99.3 kg |
| Dimension [W*D*H] | 555mm*210mm*928 mm |
| Charging Temp. Range | 0~55°C |
| Discharging Temp. Range | -20~55°C |
| Communication | CAN/ RS485 |
| WiFi Module | Optional |
| Cycle Life |
≥6000 cycles · Test Conditions: 0.2C Charging & Discharging @ 25 °C, 90 % DOD |
| Protection Level | IP65 |
| Expansion | Up to 50 Units in parallel |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/IEC6204/UKCA/CEC |
| Compatible Inverters | SMA/Schneider/ Victron Energy/ Ingeteam/ Solis/ GoodWe/ Growatt/ Soplanet/ Luxpower/ DEYE etc. |
| Other Specifications | · For Household Energy Storage
· Up To 50 Units In Parallel · 10.24kwh–512kwh Energy Coverage · High Protection Level · High Safety Performance · Easy Installation |

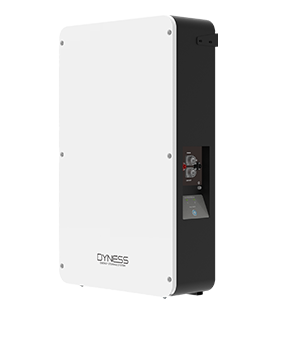

Powerbox Pro
Power your home with confidence using the Dyness Powerbox Pro – a robust 10.24kWh lithium iron phosphate (LiFePO₄) battery built specifically for residential solar energy storage.Its sleek, compact design gives you plenty of flexibility: mount it on the wall or set it on the floor to best suit your space. With an IP65 rating, it’s fully protected against dust and water, so you can install it indoors or outdoors without worry – rain, heat, or cold won’t hold it back.
An intelligent built-in Battery Management System (BMS) keeps everything running safely and reliably, protecting against overcharge, short circuits, and more. You get peace of mind plus exceptional longevity – this battery is engineered for thousands of cycles. Perfect for solar setups, it starts at 10.24kWh and scales easily – connect up to multiple units for a total capacity reaching as high as 512kWh to match your growing energy needs.
Reliable, versatile, and future-proof – the Powerbox Pro delivers dependable home energy storage that works as hard as you do.
