Max. PV Generator Power |
75,000 W |
90,000 W |
|
MPP Voltage Range |
500–850 V |
500–850 V |
|
Operating Voltage Range |
200–1000 V |
200–1000 V |
|
Rated DC Voltage / Start Voltage |
630 V / 250 V |
630 V / 250 V |
|
Max. DC No-load Voltage |
1100 V |
1100 V |
|
MPP Trackers / Strings per MPPT |
5 MPPT / 2 strings each |
5 MPPT / 2 strings each |
|
Max. Input Current per MPPT |
40 / 32 / 32 / 40 / 32 A |
40 / 32 / 32 / 40 / 32 A |
|
Max. Short-Circuit Current per MPPT |
60 / 48 / 48 / 60 / 48 A |
60 / 48 / 48 / 60 / 48 A |
|
Rated AC Power |
50,000 VA |
60,000 VA |
|
AC Voltage (3/N/PE) |
220/380 V, 230/400 V, 240/415 V |
220/380 V, 230/400 V, 240/415 V |
|
Rated AC Current |
3×75.8 A (380 V) |
3×91.0 A (380 V) |
|
Grid Frequency |
50 / 60 Hz (45–65 Hz) |
50 / 60 Hz (45–65 Hz) |
|
Cos φ / Reactive Power |
0.8 ind. – 0.8 cap. |
0.8 ind. – 0.8 cap. |
|
THD |
< 3% |
< 3% |
|
Max. Efficiency |
98.1% |
98.0% |
|
European Efficiency |
97.8% |
97.7% |
|
Standby Consumption |
1 W |
1 W |
|
Protection Class |
IP66 |
IP66 |
|
Cooling |
Temperature-controlled fan |
Temperature-controlled fan |
|
Communication |
LAN, WiFi, RS485, SunSpec TCP-IP & RTU |
Same |
|
AC/DC Surge Protection |
Type 2 / Type 2 |
Type 2 / Type 2 |
|
Ambient Temperature Range |
–25°C to +60°C |
–25°C to +60°C |
|
Max. Installation Altitude |
3000 m |
3000 m |
|
Noise Level |
< 55 dB(A) |
< 55 dB(A) |
|
Dimensions (H×W×D) |
765 × 670 × 298 mm |
765 × 670 × 298 mm |
|
Weight |
< 45 kg |
< 45 kg |
|
Certifications |
EN 62109-1/2, EN IEC 61000-6-2/-6-3, EN 55011 class B, EN 61000-3-11/-3-12 |
Same |

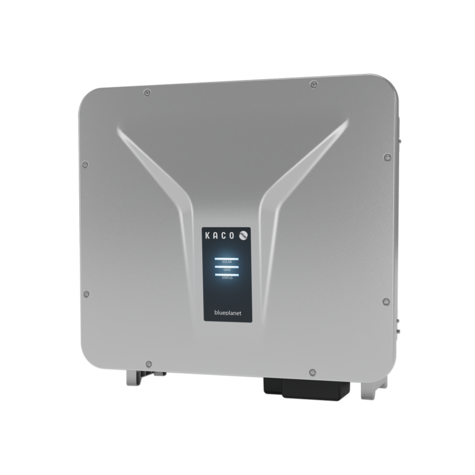

KACO Blueplanet NX3 M5 (50 kW / 60 kW)
Looking to get the absolute most out of your commercial or industrial solar installation—even on tricky rooftops? The KACO blueplanet NX3 M5 series (available in 50 kW and 60 kW models) is built exactly for that. With 5 independent MPPT trackers, advanced shade-handling technology, and full compatibility with high-power and bifacial modules, this inverter squeezes maximum energy production out of real-world conditions. Complex roof layouts, partial shading, or mismatched panel orientations? No problem—it adapts and delivers top yields every day. Why installers and businesses love it:
- Super flexible system design thanks to 5 MPPTs and wide voltage ranges
- Handles up to 150% oversizing for bigger arrays and future-proofing
- Easy plug-and-play setup with straightforward commissioning
- Built tough with an IP66-rated enclosure—ready for harsh outdoor environments
- Multiple smart connectivity options (LAN, WiFi, RS485) plus zero-feed-in capability
- Intuitive app-based monitoring so you always know how your system is performing
Whether you’re powering a warehouse, factory, or large rooftop array, the blueplanet NX3 M5 combines German-engineered reliability, outstanding efficiency, and real-world flexibility to help you generate more clean energy with less hassle. Make the smart choice for your next commercial PV project.
