AE595CMD -144BDS

AE595CMD -144BDS

AE595CMD -144BDS

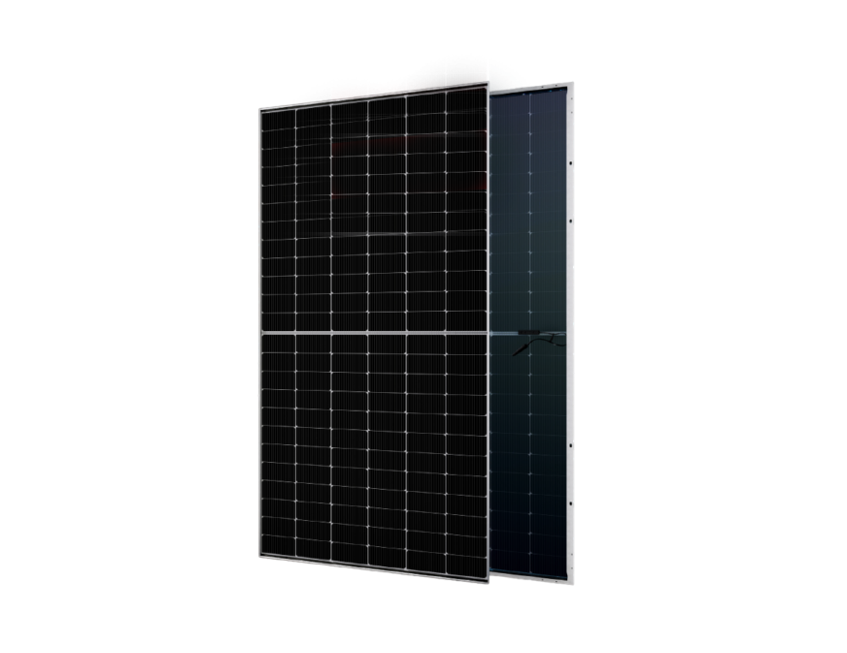

Looking for a solar module that delivers serious performance without compromise? Meet the AE Solar METEOR CMD 144 BDS – a top-tier bifacial powerhouse built with cutting-edge n-type TOPCon technology and 144 half-cut cells. Thanks to its advanced design and double-glass construction, this panel pushes higher power outputs — anywhere from 560W up to 595W depending on the exact model — while keeping degradation remarkably low over the years. That means more energy harvest, day after day, even in tough conditions. Built tough for the real world: it shrugs off salt mist, blowing sand, ammonia, and extreme weather. Certified to strict international standards (IEC 61215 and IEC 61730), it comes with a sturdy anodized aluminum frame, an IP68-rated junction box, and rock-solid double-glass protection.

Best of all? Backed by an impressive 30-year product warranty and 30-year performance warranty — giving you peace of mind for decades. Whether you’re outfitting a large commercial rooftop or a utility-scale solar farm, the METEOR CMD 144 BDS is engineered for maximum reliability, efficiency, and long-term value. Ready to upgrade to solar that performs harder and lasts longer? This is the one.

Category: Tags: , , ,
Brand:



Brand AE Solar (METEOR N-Type TOP CON Technology CMD 144 BDS)
Part Number AE575CMD-144 BDS AE580CMD-144 BDS AE585CMD-144 BDS AE590CMD-144 BDS AE595CMD-144 BDS
Peak Power Watts-PMAX(Wp)* 575 580 585 590 595
Maximum Power Voltage-VMPP (V) 42.88 43 43.14 43.29 43.46
Maximum Power Current-IMPP (A) 13.41 13.49 13.56 13.63 13.69
Open Circuit Voltage-VOC (V) 52.06 52.12 52.18 52.24 52.3
Short Circuit Current-ISC (A) 14.33 14.4 14.47 14.54 14.61
Module Eficiency  (%) 22.28 22.47 22.67 22.86 23.05
NOCT(Nominal Operating Cell Temperature) 42 ± 2 °C 42 ± 2 °C 42 ± 2 °C 42 ± 2 °C 42 ± 2 °C
Temperature Coeficient of PMAX – 0.29% /°C – 0.29% /°C – 0.29% /°C – 0.29% /°C – 0.29% /°C
Temperature Coeficient of VOC – 0.25% /°C – 0.25% /°C – 0.25% /°C – 0.25% /°C – 0.25% /°C
Temperature Coeficient of ISC 0.046% /°C 0.046% /°C 0.046% /°C 0.046% /°C 0.046% /°C
Operating Temperature -40~+85°C -40~+85°C -40~+85°C -40~+85°C -40~+85°C
Maximum System Voltage 1500V DC 1500V DC

1500V DC

1500V DC

1500V DC
Max Series Fuse Rating 25 A 25 A 25 A 25 A 25 A
Solar Cells n-Type TOPCon technology, half-cut cells n-Type TOPCon technology, half-cut cells n-Type TOPCon technology, half-cut cells n-Type TOPCon technology, half-cut cells n-Type TOPCon technology, half-cut cells
No. of cells 144 cells 144 cells 144 cells 144 cells 144 cells

Module

Dimensions

 2278×1133×30 mm 2278×1133×30 mm 2278×1133×30 mm 2278×1133×30 mm 2278×1133×30 mm
Weight 31 kg 31 kg 31 kg 31 kg 31 kg
Front Glass 2.0 mm glass, high transmission, AR coated, tempered 2.0 mm glass, high transmission, AR coated, tempered 2.0 mm glass, high transmission, AR coated, tempered 2.0 mm glass, high transmission, AR coated, tempered 2.0 mm glass, high transmission, AR coated, tempered
Back Glass 2.0 mm white glazed glass, tempered 2.0 mm white glazed glass, tempered 2.0 mm white glazed glass, tempered 2.0 mm white glazed glass, tempered 2.0 mm white glazed glass, tempered
Frame 30 mm anodized aluminium alloy 30 mm anodized aluminium alloy 30 mm anodized aluminium alloy 30 mm anodized aluminium alloy 30 mm anodized aluminium alloy
J-Box IP68 rated, 3 bypass diodes IP68 rated, 3 bypass diodes IP68 rated, 3 bypass diodes IP68 rated, 3 bypass diodes IP68 rated, 3 bypass diodes
Cables 1 x 4 mm², 350 mm length or customized 1 x 4 mm², 350 mm length or customized 1 x 4 mm², 350 mm length or customized 1 x 4 mm², 350 mm length or customized 1 x 4 mm², 350 mm length or customized
Connector MC 4 / MC 4 compatible MC 4 / MC 4 compatible MC 4 / MC 4 compatible MC 4 / MC 4 compatible MC 4 / MC 4 compatible
Packaging

Modules per box: 36 pieces Modules per 40’ container: 720 pieces

Modules per box: 36 pieces Modules per 40’ container: 720 pieces

Modules per box: 36 pieces Modules per 40’ container: 720 pieces

Modules per box: 36 pieces Modules per 40’ container: 720 pieces

Modules per box: 36 pieces Modules per 40’ container: 720 pieces Modules per 40’ container: 234/351 pieces
Bifaciality 80 ± 5% 80 ± 5% 80 ± 5% 80 ± 5% 80 ± 5%

Backside

Power Gain (%)

 5 10 5 10 5 10 5 10 5 10
Total equivalent power Pmax-EQU (Wp) 604 633 609 638 614 644 620 649 625 655
Module efficiency (%) 23.39 24.51 23.6 24.72 23.8 24.93 24 25.15 24.21 25.36
Other Specifications ·        Ideal for varied weather conditions

·        Resilient performance: low degradation, high durability, high reliability

·        Excellent low light performance

·        Up to 700 W

Comprehensive Products and System Certificates

 ·        IEC 61215 IEC 61730

·        IEC 62716 (Ammonia corrosion)

·        IEC 61701 (Salt mist corrosion)

·        IEC 60068 (Sand and dust)

·        IEC 62804 (PID resistance)
